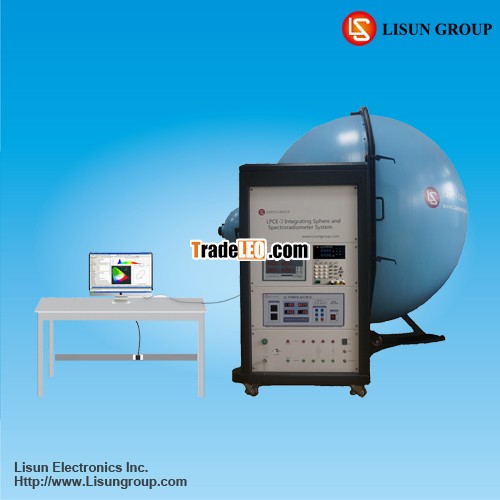

LPCE-3(LMS-7000VIS) 2.0m integrating sphere & flux light meter for led spectrum test

Introduction:

LPCE-3(LMS-7000VIS) is CCD Spectroradiometer & Integrating Sphere Test System, it is suitable
for photometric and colorimetric measurement of luminaries such as LEDs, LED
luminaires, Energy-saving lamps, Fluorescent lamps, HID lamps (high voltage sodium
lamps and high voltage mercury lamps) and CCFL. The measured data meets the
requirements of CIE, EN and LM-79 clause 9.1 for the measurement of photometry and
colorimetry.

System Configuration:
CCD Spectroradiometer (LMS-7000VIS), Optical Fiber (CFO-1.5M), Digital Power Meter (LS2008R), DC Power Source (DC3003S), AC Power Source (LSP-500VAS), Integrating Sphere (IS-*MA-CASE and IS-0.3M), Standard Light Source (SLS-50W and SLS-10W), Auxiliary Lamp (RLS-50W)

Measures:

? Colorimetric: Chromaticity coordinates, CCT, Color Ratio, Peak Wavelength, Half Bandwidth,Dominant Wavelength, Color Purity, CRI, Spectrum Test
? Photometric: Luminous Flux, Luminous Efficiency, Radiant Power, Pupil Flux, Pupil Flux Efficiency, Pupil Factor, Cirtopic Flux
? Electrical: Voltage, Current, Power, Power Factor
Specification:

? Spectral Range Wavelength: 380nm~800nm (200~1050nm can be option)
? Spectral Wavelength Accuracy: ±0.5nm Wavelength Reproducibility: ±0.5nm
? Sample Scanning Steps: ±0.1nm
? Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.003
? Correlated Color Temperature CCT: 1,500K~25,000K. CCT Accuracy: ±0.5%
? Color Rendering Index Range: 0~100.0, Accuracy: ±(0.3%rd±0.3)
? Photometric linear: ±0.5%
? Stray light: <0.015%(600nm) and <0.03%(435nm)
? Time of integration: 0.1mS~20S
