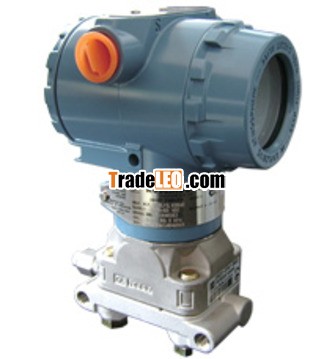

Features of Rosemount 3051 Pressure Transmitter
· Safety Certified to IEC 61508
· Static pressure option up to 6,092 psi (420 bar)
· Process Pressure and Sensor Temperature alerts
· User configurable alarm and saturation values
· Adjustable low flow cut-off
Specifications of Rosemount 3051CG Gauge Pressure Transmitter
3051CD Differential pressure transmitter
3051CG Gage pressure transmitter
3051CA Absolute pressure transmitter
| | Pressure Range | |||||
| Roemount 3051CD | Rosemount 3051CG | Rosemount 3051CA | ||||
| 0 | -3----3inH2O/0.1inH2O | Not present | Not present | |||
| 1 | -25---25inH2O/0.5inH2O | -25—25inH2O/0.5inH2O | 0—30psia/0.3psia | |||
| 2 | -250—250inH2O/2.5inH2O | -250—250inH2O/2.5inH2O | 0—150psia/1.5psia | |||
| 3 | -1000—1000inH2O/10inH2O | -407-1000inH2O/10inH2O | 0—800psia/8psia | |||
| 4 | -300—300psi/3psi | -14.7—300psi/3psi | 0—4000psia/40psia | |||
| 5 | -2000—2000psi/20psi | -14.7—2000psi/20psi | Not present | |||
| | Output | |||||
| A | 4—20ma,with HART agreement digital signal | |||||
| M | 1—5Vdc,with HART agreement digital signal | |||||
| F | FF fieldbus | |||||
| W | profibus | |||||
| | Structure parts material | |||||
| Process flange type | Flange material | Liquid/gas discharge valve | Flange joint material | |||
| 5 | coplane | Electroplate carbon steel | Stainless steel | Electroplate carbon steel | ||
| 2 | Coplane | Stainless steel | Stainless steel | Stainless steel | ||
| 3 | coplane | Hastelloy C | Hastelloy C | Hastelloy C | ||
| 4 | Coplane | Monel | Monel | Monel | ||
| 8 | coplane | Electroplate carbon steel | Hastelloy C | Electroplate carbon steel | ||
| 7 | coplane | Stainless steel | Hastelloy C | Stainless steel | ||
| 0 | Replace flange | |||||
|
| Diaphragm Material | |||||
| 2 | 316L stainless steel | |||||
| 3 | Hastelloy C | |||||
| 4 | Monel | |||||
| 5 | Tantalum | |||||
| 6 | Gold plated monel | |||||
| 7 | Gold plated stainless steel | |||||
