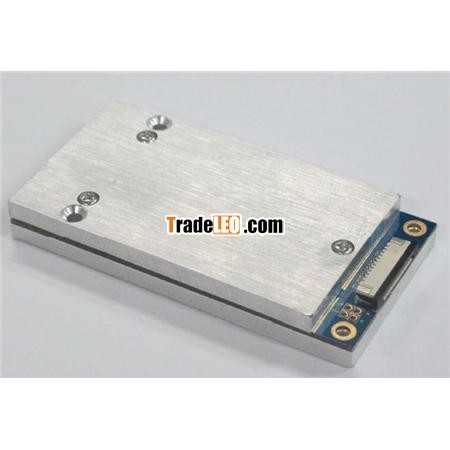

Model:HYM750
Brief Introduction
HYM740 UHF RFID reader module uses R2000 chip, which complies with EPC C1G2
protocol, its working frequency is 840~960MHz,with LBT function. It supports dense
reader working mode(DRM).With standard 12dBi antenna,the reading distance can
reach 24 meters, maximum identifying speed can reach 400/S. With simple power
supply and interface circuit, a high-performance RFID system can be established. It is
suitable for logistics, costume, medical industry, and complex assets management, etc.
Technical Data
| No | Item | Technical data | Unit | Remark |
| 1 | Fixed current | 1.5 | A | Max power output |
| 2 | Standby current | ≤1 | mA | EN pin low level |
| 3 | Frequency range | 840~960 | MHz |
|
| 4 | Default working frequency | Frequency hopping | MHz | Frequency interval 250KHz |
| 5 | Channel bandwidth | ≤250 | KHz |
|
| 6 | Frequency hopping speed | ≤2 | s |
|
| 7 | Fixed power | 30 | dBm |
|
| 8 | Stepping interval | 1 | dB | 5~30dBm, adjustable by software |
| 9 | Label protocol | EPC C1G2 /ISO18000-6C |
|
|
| 10 | Communication protocol | Asynchronous serial ports protocol |
|
|
| 11 | Starting time | ≤50 | ms |
|
| 12 | Radio-frequency power rising time | ≤500 | μs |
|
| 13 | Radio-frequency power dropping time | ≤500 | μs |
|
| 14 | Adjacent channel power leaking ratio | ≤-40 | dB | ±1CH |
| ≤-60 | dB | ±2CH | ||
| 15 | Frequency stabilizing ratio | ±10 | ppm | -25℃~+40℃ |
| ±20 | ppm | -40℃~+60℃ | ||
| 16 | Max reading range | 24 | m | 12dBi antenna |
