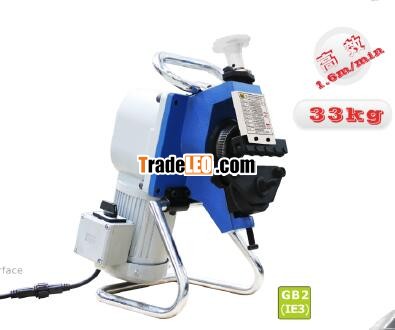

Model:GBM-6D
Send Inquiry
Specification for Portable pipe & Plate beveling machine:
| Model | Clamping Plate Thickness | Min.Processing Plate Width | Net Weight for Machine | Beveling Width | Beveling Angle | Beveling Speed |
| GBM-6D | 4-16mm | ≥55mm | 33kg | Single beveling width: 6mm Max. beveling width: 8mm | 25°, 30°, 35°, 40°, 45° | 1.2 - 1.8m/min |
| GBM-12D | 6-30mm | ≥75mm | 155kg | Single beveling width: 12mm Max. beveling width: 18mm | 25°-45° (adjustable) | 1.5 - 2.6m/min |
| GBM-12D-R | 6-30mm | ≥75mm | 235kg | Single beveling width: 12mm Max. beveling width: 18mm | 25°-45° (adjustable) | 1.5 - 2.6m/min |
| GBM-16D | 9-40mm | ≥115mm | 212kg | Single beveling width: 16mm Max. beveling width: 28mm | 25°-45° (adjustable) | 1.2 - 1.6m/min |
| GBM-16D-R | 9-40mm | ≥115mm | 315kg | Single beveling width: 16mm Max. beveling width: 28mm | 25°-45 (adjustable) | 1.2 - 1.6m/min |
Products Fetures:
1. IE 3 Standard motor: 400w
2. Max Bevel width : 8mm
3.High Efficiency: 1.8m/min
4.No scrap iron splash,more safe
5.High efficiency of reduction gear box
6.cold cutting,non-oxidation on the surface
7.Available for Both metal plate and pipe beveling
Processing Way:
Mode1: Cutter catch the steel and lead into the machine to complete the job while processing small steel plate.
Mode2:Machine will travel along the edge of the steel and complete the job while processing large steel plate.
Processing photo for referece:
