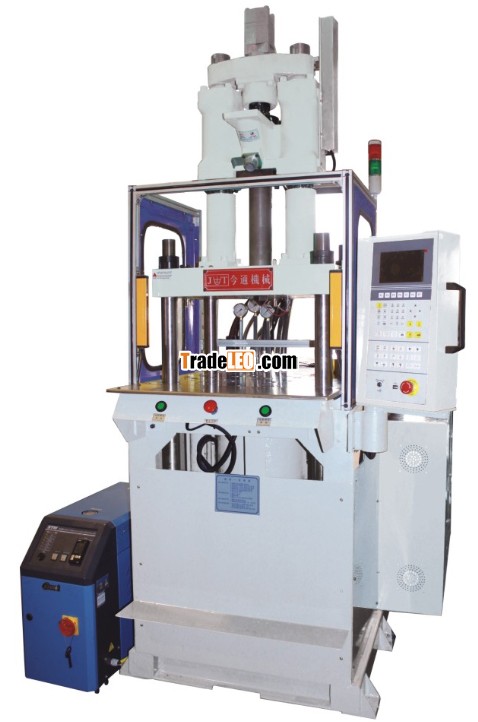

Thermosetting Bakelite vertical injection molding machine JTT-550BMC

Clamping Force: 55-120T

Injection Weight: 59-353g

Vertical clamping,  vertical injection.

With thermosetting system to control mold temperature

Alternative single sliding table, double sliding table, rotary table, which improve productivity

Alternative energy-saving motor

Model		JTT-550
Screw Diameter	mm	30 35 40
Injection Pressure	kg/cm2	2170 1594 1220
Theoretical Shot Volume	cm3	99 135 176
Max Shot Weight	g/oz	90/3.2 123/4.3 160/5.7
Injection Rate	cm3/sec	51 69 90
Screw Stroke	mm	140
Screw Speed	rpm	0-175
Nozzle Contact Force	tons	2.6
Nozzle Stroke	mm	200
Number of Temperature Control	-	3
Hopper Capacity	L	30
Clamping Force	tons	55
Opening Force	tons	13.5
Platen Size	mm	650x490
Distance Between Tie Bar	mm	500x340
Min Mold Height	mm	260/200
Opening Stroke	mm	200
Max Open Daylight	mm	460/400
Ejector Force	tons	1.3/2.1
Ejector Stroke	mm	45/145
Slide Stroke	mm	500
Max Mold Weight	kg	150
Station Clearance	mm	±0.02
Max Hydraulic Pressure	kg/cm2	140
Pump Output	L/min	47
Oil Reservior Capacity	L	150
Cooling Water Consumption	/hr	800-1000
Pump Moter Power	KW	7.5
Barrel Heating Power	kw	4.5
Total Power	kw	12
Machine Weight	tons	2.1/2.3/2.5
Machine Dimension	m	2.0*1.20*2.69
		2.0*1.865*2.69
Shipping Weight	tons	2.3/2.5/2.7
Shipping Measurement	m	2.1*1.30*2.79
		2.1*1.965*2.79
