Model:HCWG 51/70/100

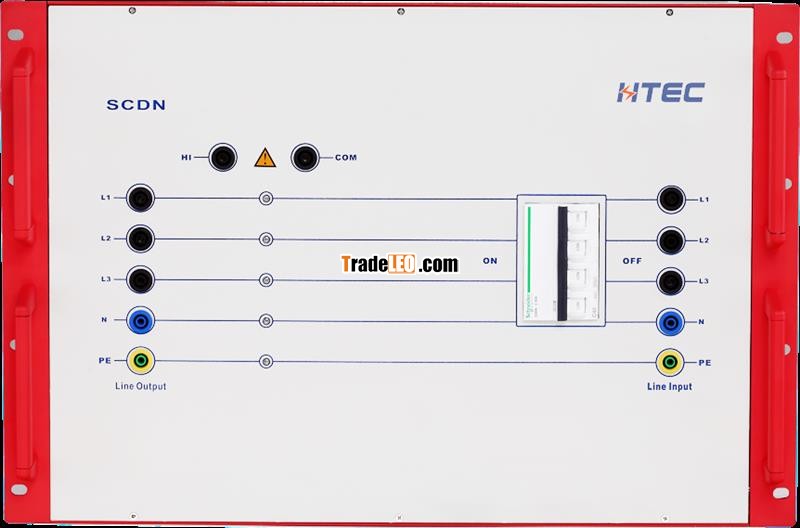

HCWGtest system meets all your current and future surge testing requirements. A modular expandable system that grows withyour application needs, and various test accessories, including single &three phase CDN (Max current up to 100A) and symmetrical & asymmetricaldata signal line CDN are available .
Features & Benefits
u Max outputvoltage 5.0kV/7.0kV/10.0kV
u Telecom wave10μs/700μs is expandable（15Ω&40Ω）
u Combinationwave: 1.2μs/50μs（2Ω）
u High qualitycomponents，small in size & light weight
u Data line CDN，according to IEC 61000-4-5，drawing 11-14
u Circuitmeasurement of Peak voltage and current
u Color touchscreen interface，easy to operate
u According tolatest IEC&GB standards
u Complianceand certified test system
u Singlephase16A & three phase 32/ 50/100A CDN, full automatic control
Standards
u IEC/ EN61000-4-5
u GB/T17626.5
u ITUK.41
u ITUK.45
u ANSI C62.41
u GB/T17215.211
u ITU K.20
u EN/IEC60255-22-5
| Control power supply | 85V-264V | Dimension | 19″/8U（45×32×49cm） |
| User test storage | infinite | Weight | 30kg |
| Remote interface | Ethernet RJ45 | USB | For USB memory stick |
| Resolution ratio | 7″/ 800×480 | Safety circuit | Stop the test when unlocked |
| Output voltage | 0.2 - 5.0/7.0/10kV±10% | Output current | 0.1 - 2.5/3.5/5.0kA±10% |
| Voltage rise time | 1.2us±30% | Current rise time | 8us±20% |
| Voltage duration | 50us±20% | Current duration | 20us±20% |
| Polarity | pos/neg/alternate | Counter | 1 - 9999 |
| Output impedance | 2Ω | Phase sync | 0 - 359°/ 1°step |
| Peak voltage monitor | BNC output ：1000:1 | Peak current monitor | BNC output：1kA/V |
| Fast setup | IEC standards | Automatic set-up | test voltage（6 groups） Phase sync （6 groups） |
