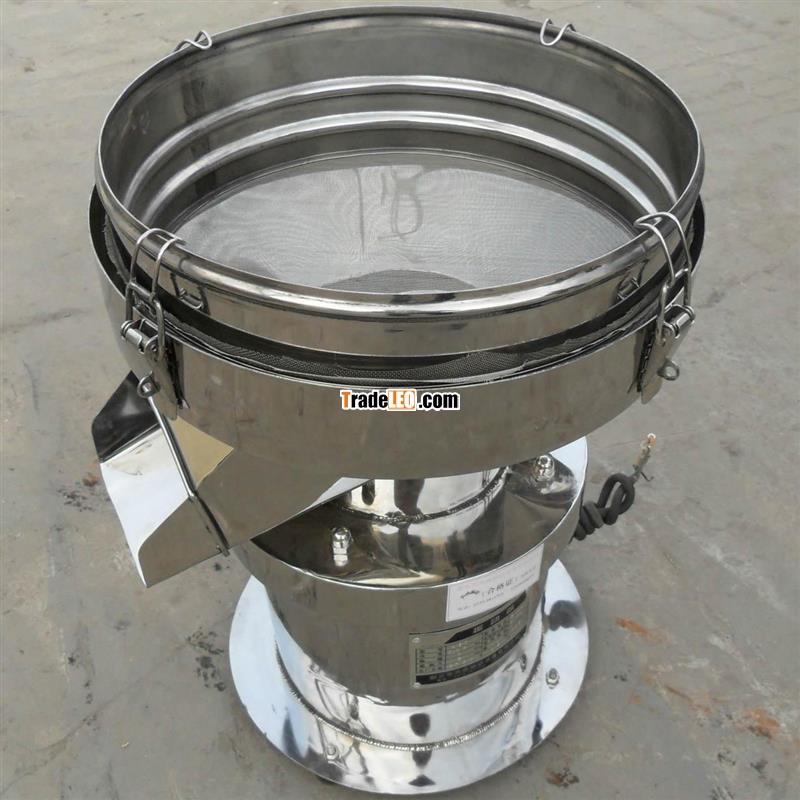

Model:DZF-450
Send Inquiry
Application:
1. Chemicals industry: paint, ink, oil paint, latex paint...
2. Food industry: starch, soy milk, fruit juice, beverage, dairy product, seasoning...
3. Other industries: slurry, pulp, liquid waste, liquid medicine...
Parameters:
| Model | Screen diameter | Frequency | Power | Layer | Material size |
| DZF-450 | 400mm | 1440r/min | 0.18Kw | 1 | 0.038-5mm |
Features:
1. Open or fully enclosed design
2. Ideal for granular or powder material screening, slurry or pulp filtering
3. Long life screen, easy to be replaced
4. Trolley-mounted base is available
5. Made of 304 stainless steel
Model of ordinary type:
| Model | DZ-600 | DZ-800 | DZ-1000 | DZ-1200 | DZ-1500 | DZ-1800 | DZ-2000 | |
| Nominal diameter(mm) | Φ600 | Φ800 | Φ1000 | Φ1200 | Φ1500 | Φ1800 | Φ2000 | |
| Effective screen diameter (mm) | Φ540 | Φ720 | Φ916 | Φ1120 | Φ1420 | Φ1720 | Φ1920 | |
| Effective screen area(m2) | 0.23 | 0.41 | 0.66 | 0.99 | 1.58 | 2.32 | 2.90 | |
| Screen mesh | 2--500 mesh | |||||||
| Material size(mm) | <Φ10 | <Φ15 | <Φ20 | <Φ30 | ||||
| Vibrational frequency | 1500rpm | |||||||
| Number of deck | 1-3 | |||||||
| Power (KW) | Vibrating motor | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 | 4.0 |
