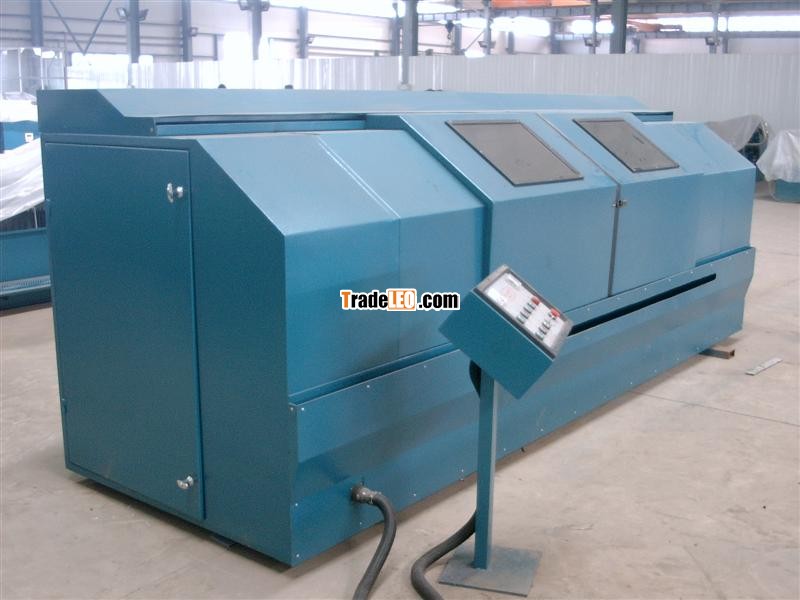

Product name:Copper polishing machine
Used for gravure cylinder polishing process
Suit for both Hollow and Shafted cylinder at different specification as customers'request.
about relevant technical problems,pls tell us your specific request,we will sent you support offer accordingly following.
Copper polishing machine is our practical models based on advanced technique. The whole machine can run smoothly, high efficiently and environment protection. Cylinder drive adopts 3kw stepless speed reducer,which can adjust speed during80-400rpm/min.
Features:
1. Steel welded framework with high performance, improve the rigidity of equipment and ?reduce vibration.
2. Full-closed cover can reduce environmental pollution.
3. Full-closed rail can reduce external pollution, to prevent dust entering rail, affecting rail precision.
4. Rail and other key operate parts can filling oil and lubrication, which can improve service life. Scientific design, strong adsorption of dust, reducing plant pollution.
Technical Parameters
| Cylinder length | 300-1300mm |
| Cylinder diameter | 90-400mm |
| Cylinder rotation speed | 80-400rpm |
| Buffing wheel rotation speed | 2900rpm |
| Buffing wheel moving speed | 500-2000mm/min |
| Dimension | 3900mm x 1650mm x 1400mm |
| Weight | Approx.2000kg |
Needed consumanles:
1.Buffing cloth/polishing wheel,polishing paste,etc
2.clamping materials:copper jointing,adaptor,cone,F4,rubber sealed circle,screw nut,gear,etc.
Kindly sent us your comsumable usual required specific request list with needed quantity,we will sent our offer for your consideration in toghether.
We could provide technical engineer to your place for install machine and give technical support for you.
