Model:JC0004
| Product Configuration | ||
| Ssystem | System Security | Supports there-level account, password, user authority management. |
| OS | Embedded Linux OS | |
| Processor | Hi3518E+0130 | |
| P2P (Free) | No need to preset camera, Offer free P2P, Plug&play, Support QR code scanning to view | |
| onvif Protocol | Support onVIF 2.1 | |
| Multi-device function | Support 12 language remote surveillance, record, alarm, wifi setting etc. | |
| PC client | Support remote multi-devices monitor, record, alarm etc. | |
| Cell Phone View | Self R&D APP, Support Iphone,Android smart Phone | |
| TF Card Record | One 16GB TF Card,Support 128G | |
| Lens | Lens Type / IR-CUT | Lens Standard : 4mm 6mm 8mm 12mm ; Build-in IR CUT, No color cast |
| Solar Power | Material | 20W Solar Panel， Independent research MPPT high efficiency solar energy charging system, |
| Battery | No Sunshine,the battery can support 72 hours | |
| The temperature of the sunshine lower than 26°C,the battery can support 15 days | ||
| The temperature of the sunshine higher than 33°C,the battery can work Continuously | ||
| Video | Image Compression | H.264 |
| Sensor | 1/4 Cmos 130 MP | |
| Video Parameters | Brightness, Contrast,Saturation,Exposure,sharpness can be adjusted | |
| Image frame Rate | 25fps(50HZ), 25fps(60HZ) | |
| First Stream /Second S | 720P-(1280x720),(640x352) / VGA-(640x352),(320x176) | |
| Audio | Format / in /out | None |
| Night Vision | Lux | 0.4Lux |
| Night Visibility | 36 Φ5 IR LEDs,Lower Power Consumption after updation, Night visibility up to 20 meters | |
| Pan/Tilt | Preset Angle Speed | None |
| Alarm | Motion Detect | Support 4 Independent detection areas(Sensitivity can be adjustd 1-100） |
| Alarm Action | Support Email Photo alert,Snapshot and Record uploaded to FTP | |
| Network | Ethernet Interface | One 10/100Mbps RJ-45 |
| Supported Protocol | TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP etc. | |
| Access Protocol | onvif 2.1, support verify authority( default closed) | |
| IP Mode | Dynamic IP address, static IP address, PPPOE | |
| online Visitor | Support Max 6 visitors at the same time (First Stream:3 visitors;Second Stream:3 visitors） | |
| Supported OS | Microsoft Win98 SE/ME/2000/XP/Vista/Win7/Win8/ Mac OS. | |
| Browser | IE6.0, IE7.0, IE8.0, FireFox, Google or other standard browser | |
| AP Function | Support AP connect WIFI | |
| Wireless Standard | WIFI, 802.11b/g/n | |
| Others | OSD | Support the OSD name, date and time info superposition（Open/Off） |

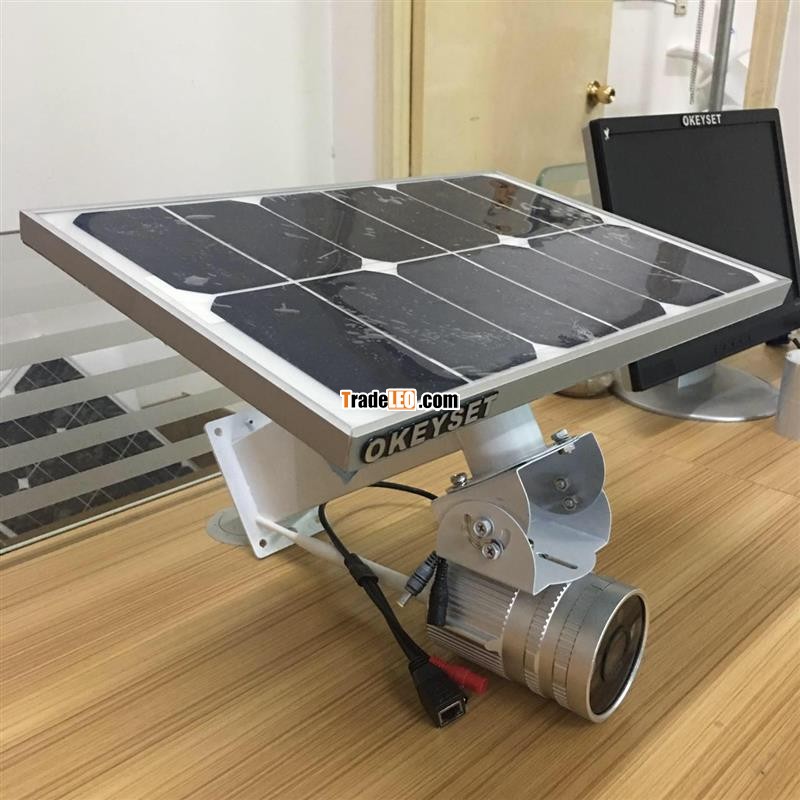

| Product Type / Color | metal Bullet, Outdoor waterproof /Silver | |
| Power | DC5V 2A / Support Solar Power and Battery (5V 2A) | |
| Battery / Capacity | Lithium / 2 x 18AH | |
| Working Temperature / | -10~50 °C | |
| Accessories | Adaptor, WIFI Antenna, CD (including User manual), Bracket, Screw | |
| Certification | CE,FCC,RoHS | |
| Warranty | Limited 2-Year Warranty | |
