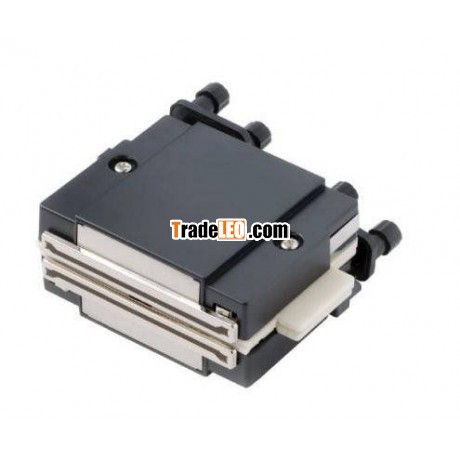

Original Rastek H652 Printhead CE4 Toshiba TEC 01-0068 - 45129144

This printhead is suitable for EFI Rastek H652 printers. This is the original EFI part (number 45129144).

Product Specifications

    Technology: Multi-drop grayscale micro-piezo
    Grayscale levels: 16
    Active nozzles: 636
    Print swathe width: 53.6 mm
    Nozzle pitch: 169 μm
    Native resolution: 150 dpi
    Printhead weight: 148 g
    Dimensions: 85 x 70 x 23 mm
    Drop volume: 6 - 90 pl
    Typical firing frequency: 2.8 - 28 kHz
    Ink Compatibility: oil-based pigment ink and UV curable pigment ink
Printer compatibility: EFI Rastek H652 / Rastek H700 / Rastek H650, Raster Daytona H700UV, Flora F1-180UV
