Model:482*92 *72
Send Inquiry

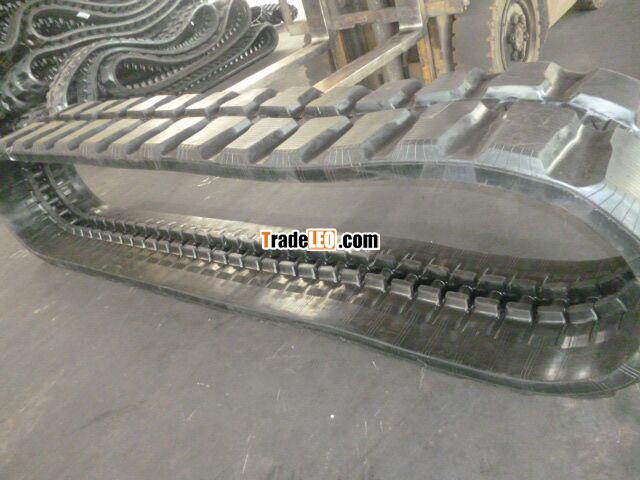

Rubber Tracks - 485*92*72 for YANMAR SV100
* Lug patterns on rubber tracks may be different but they are guaranteed to fit.
* Other part no. Not included in the list are available.
* Please contact your sales representative if you have any questions.
* Part Numbers and Brand names are used for reference purposes only.
* Part No. Description Most Popular Brand and Model Application (Interchangeable)
* 230x48X66 RUBBER TRACKS Bobcat: X320, 320L, X320 Delta, X320E, X322 (TYPE2), X322D,
X322E, X323 Cat: 301.8, ME15, MH15
* 230x48X68 RUBBER TRACKS Hitachi: Ex15 Lotus Root Takeuchi: TB016, TB016 S/LSA, TB016E
* 300x52.5X84 RUBBER TRACKS Cat: 303.5, 303CR, ME35, MM35, MM35Bm MM35T, MS35 (TYPE2)
* 381X101.6X42 RUBBER TRACKS ASV: RC50 Cat: 247
* 457X101.6X51 RUBBER TRACKS ASV: RC100 Cat: 287B
* 4500x90X47 RUBBER TRACKS: KUBOTA COMBINE HARVESTER DC-60
* Special Features of the PY Rubber Tracks
- 3 metal Cores Wound Up: Higher durability & Better flexibility
- Smaller Contact Surface (Smaller Lug): Better grip & traction
- Bi Directional: Tracks are Interchangeable
- Reinforced Edges Between Lugs: Decreasing the chance of slicing
- Jointless: Track is much stronger than the joint type
*(Other Brand applications Include: Volvo, KOMATSU, KUBOTA, IHI, TAKEUCHI, KOBELKO, HITACHI,
YANMAR, FURKAWA, HANIX, KATO, SUMITOMO, BOBCAT, AIRMANN, Caterpillar, Doosan,
*For Mini/MIDI Excavators & Compact Track Loaders
*Size Classification and Part number: Width(mm) X Pitch(mm)
(=Distance Between metal Cores) X Numberof links (=Number of metal Core)
| Width*Pitch length(mm) | Number of links | Width*Pitch length(mm) | Number of links | Width*Pitch length(mm) | Number of links |
| 130*72 | 28-53 | 300*52.5K | 72-84 | 400*72.5KW | 68-92 |
| 150*60 | 28-49 | 300*52.5KW | 72-92 | 400*74 | 68-76 |
| 150*72 | 29-40 | KB300*52.5 | 72-92 | 400*75.5K | 74 |
| 170*60 | 30-40 | KB300*52.5N | 72-98 | B400*86 | 52-55 |
| 180*60 | 30-40 | JD300*52.5N | 72-98 | 400*90 | 42-56 |
| 180*72 | 30-58 | 300*53K | 80-84 | Y400*142 | 36-37 |
| 180*72K | 30-37 | 300*55 | 70-86 | 400*144 | 36-41 |
| B180*72K | 34-51 | 300*55.5K | 76-82 | Y400*144K | 36-41 |
| B180*72A | 30-51 | 300*71K | 72-55 | 420*100 | 50-58 |
| H180*72 | 30-50 | 300*109N | 25-42 | 450*71 | 76-88 |
| 190*60 | 30-40 | K300*109 | 37-41 | DW450*71 | 76-88 |
| 190*72 | 34-39 | 300*109WK | 35-42 | 450*73.5 | 76-84 |
| 200*72 | 34-47 | B300*84 | 78-52 | 450*76 | 80-84 |
| 200-*72K | 37-47 | T300*86K | 48-52 | 450*81N | 72-80 |
| 230*48 | 60-84 | 320*52.5 | 72-98 | 450*81W | 72-78 |
| 230*48K | 60-84 | B320*52.5 | 68-98 | KB450*81.5 | 72-80 |
| 230*72 | 42-56 | 320*54 | 70-84 | K450*83.5 | 72-74 |
| 230*72K | 42-56 | B320*86 | 49-52 | B450*84 | 53-56 |
| 230*96 | 30-48 | 320*90 | 52-56 | B450*86 | 52-55 |
| 230*101 | 30-36 | 320*100 | 38-54 | 450*90 | 58-76 |
| 250*47K | 84 | 320*100W | 37-65 | KU450*90 | 58-76 |
| 250*48.5K | 80-88 | Y320*106K | 39-43 | T450*100K | 48-65 |
| 250*52.5K | 72-78 | 350*52.5 | 70-92 | K450*163 | 38 |
| 250*72 | 47-57 | 350*54.5K | 80-86 | 485*92W | 74 |
| B250*72 | 34-60 | B350*55K | 77-98 | 500*90 | 76-82 |
| B250*72B | 42-58 | 350*56 | 80-86 | 500-92 | 72-84 |
| E250*72 | 37-58 | 350*75.5K | 74 | 500*92W | 78-84 |
| 250*96 | 35-38 | 350*90 | 42-56 | 500*100 | 71 |
| 250*109 | 35-38 | 350*100 | 46-60 | K500*146 | 35 |
| 260*55.5K | 74-80 | 350*108 | 40-46 | 600*100 | 76-80 |
| Y260*96 | 38-41 | 350*109 | 41-44 | 600*125 | 56-64 |
| 260*109 | 35-39 | Y370*107K | 39-41 | 700*100 | 80-98 |
| 280*72 | 45-64 | 400*72.5N | 70-80 | 750*150 | 66 |
| Y280*106K | 35-42 | 400*72.5W | 68-92 | 800*125 | 80 |
| 300*52.5N | 72-98 | Y400*72.5K | 72-74 | | |
| 300*52.5W | 72-92 | KB400*72.5K | 68-76 |
