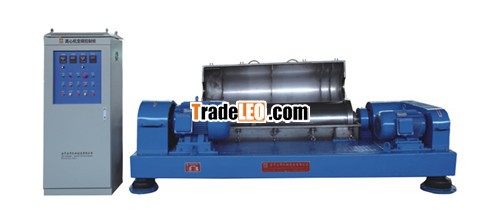

LW250 Horizontal ScrewDecanter Centrifuge

Product name: LW250Horizontal Screw Decanter Centrifuge

Horizontal ScrewDecanter Centrifuge ,  Componentsof the host is Cylinder cone drum, screw conveyor, differential system, bearingseat, frame, shell, main motor, auxiliary motor and electric control system.

Main technical parameters:

Model: LW250B

Drum diameter:250

Drum length:1000

Ratio of lengthto diameter: 4

Spiral form:single head

Max speed Max:4000r/min

Separationfactor: 2238

Differentialspeed: 1-30r/min (stepless adjustable)

Differential:involute planetary gear (Hangzhou military industry)

Frequencyconverter: high quality brand frequency converter

Screw withwear-resistant treatment: tungsten carbide tungsten carbide

Bearing: NSK(Japan)

Seal: NAK(Taiwan)

Motor: the mainmotor 7.5KW auxiliary motor 3KW

Protectionlevel: IP55

Insulationlevel: F

Triangle tape:GB

Noise: less than85 dB (A)

Vibrationintensity: less than 6.5mm/s

Working mode: 24hours of continuous operation

Processingcapacity: 0.5-5m /h fand (according to the actual characteristics of thematerials may be)

Solid removalrate: 96%

The cakemoisture content: less than or equal to 70% (according to the actualcharacteristics of the materials may be)

Dimensions: 2990x 920 x 1288

Machine weight1000Kg Kg
