Model:R-VF/P

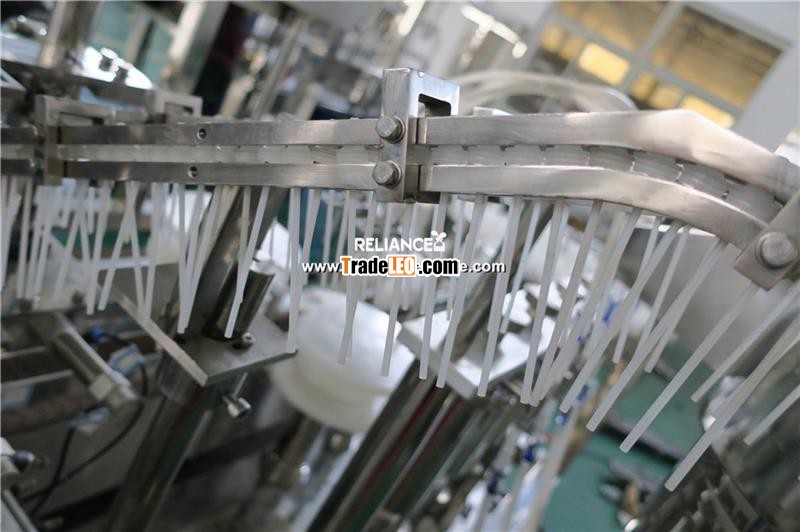

R-VF/P This machine design for sterile saline nasal spray bottle filling machine , and made by Reliance machinery Co.,Ltd from China, the machine with function ofall fully automatic bottle sorting, feeding, stoppering, dropper tips and eyedroppers placing system, servo control torqueing with feedback protectionsystem for cap sealing, engineered toperform multiple tasks within a compact design. It adopts high quality peristaltic pump or high precision volumetricpump as filling system, PLC and touch screen control system, free adjustmentfor the filling range from 5ml to 30ml. An optional ejuice labeling machine andcartoning machine and shrink wrapping machine can alsobe incorporated in the filling line.
Application:
This monoblock is especially design and used in filling and packingsolution for saline nasal spray drop, oral spray solution, ear drop solution,
Specification:
| No. | Item | Specification |
| 1 | Filling size | 15ml - 60 ml |
| 2 | Capacity | 1800-2400 bottles to 4800 bottles /hour |
| 3
| Power | 1.5KW 220V single phase |
| 4 | Pressure | 0.4 ~ 0.7MPa |
| 5 | Air Supply | 0.6kg/cm2，10m3/h
|
| 6 | Gross weight | 600 KG |
| 7 | Dimension | 2300 x 1500 x 1700mm (LX W X H) |
