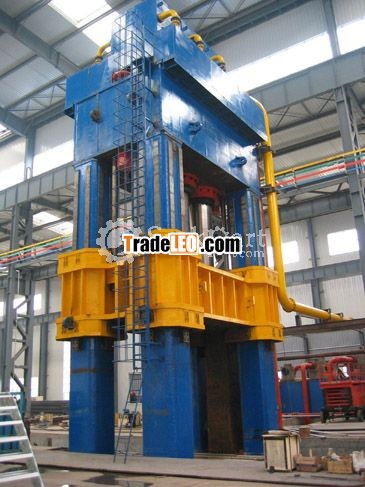

3000 Ton  ForgingHydraulic Press

1、Specifications

Nominal capacity  25/30 MN

Liquid working pressure  25/30 Mpa

Pressure grading  18000 kN，30000kN

Return capacity  2000 kN

Daylight  4200 mm

Max. working stroke of slider  2000 mm

Center distance between columns  3400×1600mm

Size of movable working table   6000×2000mm

Capacity of movable working table  750 kN

Load of movable working table  50 Ton

Stroke of movable working table  2000 mm (L & R)

Slider speed atapproach  250 mm/s

Slider working speed  66-33 mm/s (2500 Ton)  100-50 mm/s (1500 Ton)

Return speed  250 mm/s

Working table movingspeed  250 mm/s

Total power   ~1320 kW

Height above floor  ≤10300mm
