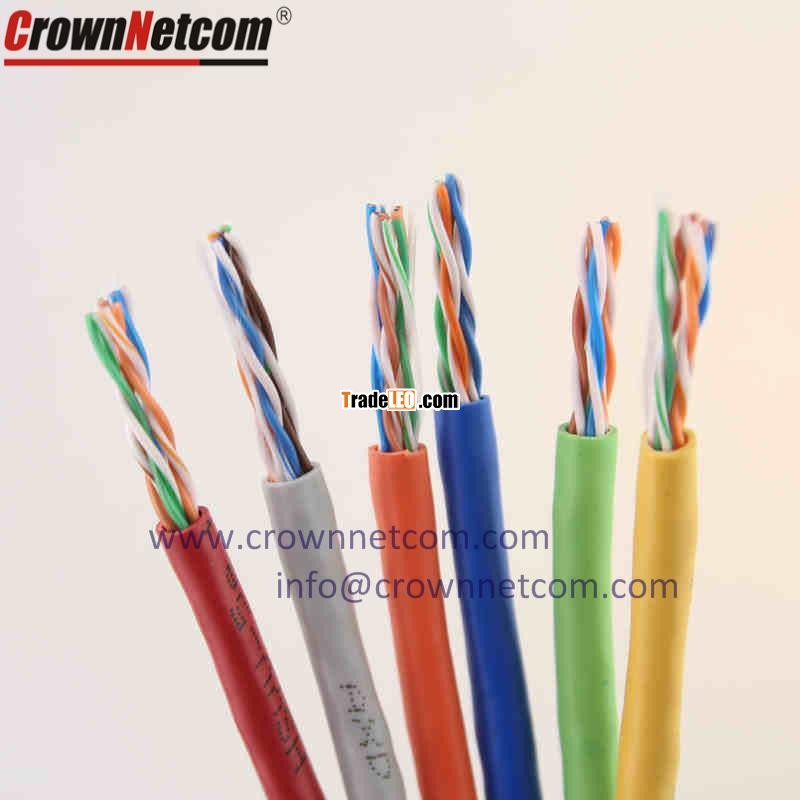

FTP Cat5e Network Cables Solid Copper Category 5e Lan Cable
(info at crownnetcom.com)
| Model | Twisted Pair Cable Cat5e |
| Conductor Size | 24AWG |
| 0.5mm/0.51mm | |
| Conductor Material | CCA/CCU/BC |
| Nuber Of Conductor | 4P |
| Shiled | UTP/FTP/STP/SFTP |
| Flammability Grade: | CM,CMR,CMP |
| Indoor / Outdoor | Single jacket/Double jacket |
| Insulation Material | HDPE |
| Insulation Thickness | 0.91mm |
| Jacket Material | PVC, ROHS PVC, LSZH PVC |
| Outer Jacket Thickness | 5.2mm |
| DC Resistance(Max.) | 9.5 Ohm/100m |
| DC Resistance Imbalance | 2.50% |
| Working Capacitance(Max.) | 5.4nF/100m |
| Insulation Resistance | 10000 MOhm.km |
| Transmission Velocity | 65% |
| Operating Temperation | -40 °C - +75 °C |
| PVC Jacket Color | As client's request. |
| Marking On Jacket | On your request (Print your brand) |
