Model:Z28-150
Send Inquiry

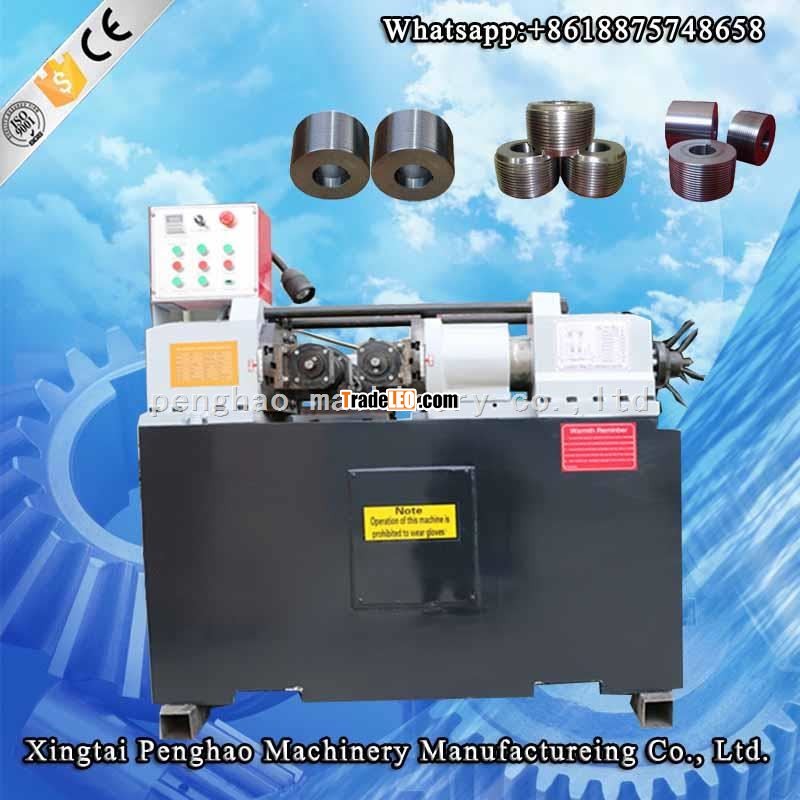

Thread rolling machine
The Z28-150 stud threading machine is maily used for processing precision standard parts of thread and high strength,including regular thread,trapezoid thread and modulax thread.The objective material to be processed inchcde carbon steel ,alloy steel and nonferrous metal with elongation over 10% and tensile srength less than 100kgf/mm2
| Specification of Z28-150 Thread rolling machine | |||
| The Maximum rolling pressure | 165KN | The feed speed activities | 5mm/s |
| Distance from spindle center | 120-240mm | Weight | 1850kg |
| Spindle speed | 36,47,60,78r/min | Length of thread | No limit(plus protection) |
