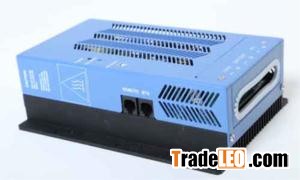

Model: SC-MPPT40Rated Voltage: 12V/24V/48V DC
Rated charge current (Include load current): 40A
Max. Load current: 15Amp
Max. PV open circuit array voltage :105V
Typical idle consumption: is less than 10mA
Protection: Against Reverse Connected Battery; Reverse Current Protection;
Against Reverse Connected Solar Modules ; Over temperature Protection ;
PV overvoltage Protection ;Current-limited for Excessive Charging Current;
Load Output Overload Protection;
Temperature compensation -4mV/cell.base 25 Centigrade)
Lead acid battery settings :Adjustable
NiCad battery settings: Adjustable
Ambient temperature: 0-40 Centigrade (Full load) 40-60 Centigrade (De-Rating)
Altitude Operating 5000 m, Non-Operating 16000 m
Protection class IP21
