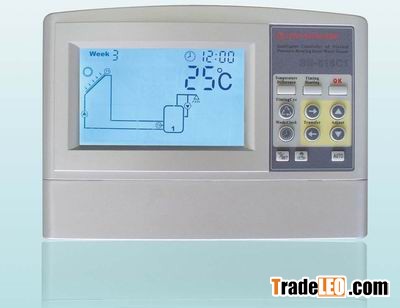

Introducesuitable for separated pressurized solar system
Main technical data
1. Dimension: 210mm×145mm×48mm
2. Self power consumption: <3W
3. Measuring accuracy of temperature: ±2?
4. Temperature range of measurement: 0~150?
5. Maximum power of controlled circulation pump: possible to
control 4 pumps, every power=600W
6. Power of auxiliary electrical booster =2000W
7. Inputs: 5 inputs, Pt-1000 for collector, sensor temperature
=500? ( silicon cable =280?), NTC10K,B=3950 for tank,
sensor temperature =135?, ( PVC cable =105?)
8. Outputs: 5 outputs, one for electrical booster, 4 for circulation
pump or 3-way electromagnetic valve)
9. Ambient temperature range: -10 ~ 50 ?
10.Water protection grade: IP40.
Main functions
1. Clock/week display
2. Chosen system ( 1-8 system available )
System1: 1 collector array - 1 storage tank - 1 pump
Sy
