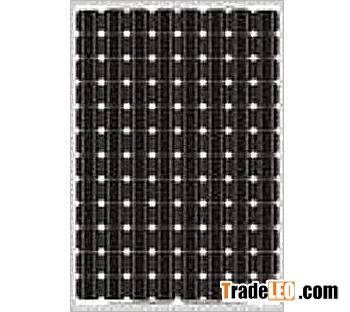

Description 230W Solar Panel, Made of Mono Crystalline Silicone Cells
Model Number: 230W solar module SY5M96-230
Key Specifications/Special Features: Made of mono-crystalline solar silicone cells
Peak power: 230 watts (day time with fully sun shine)
Open voltage circuit (voc):58.5V
Max. power voltage (Vmp): 47.5V
Max. power current (Imp): 4.84A
Short circuit current (Isc): 5.25A
Cells in series: 96pcs
Nominal working temperature: -20? to +40?
Dimensions: 1602x1061x40mm
Installation: solar panel face direct to sun
Weight: less than 19kg
Working life: more than 25 years

Monocrystalline pv module
Certificate:CE,ISO,TUV
Warranty:5 years for the whole product,90%power for 10 years,80% power for 25 years.

On-grid Utility System
Rooftop on-grid commercial system
Off-grid residential, commercial system
