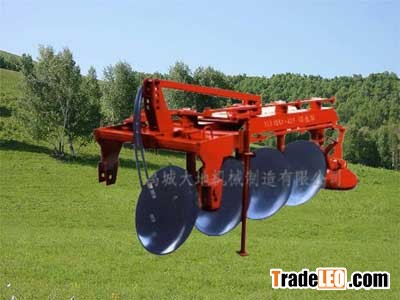

The modern agriculture requirement is lower cast and higher volume output. The cost for cultivation is paid more and more attention by the customers and to meet this require-ment.Our company developed the series of reversal plough. The plough camber is deeply prefer by the customer all over the country in recent years particularly. The working speed is 8-10km/h.Series of 1LF reversal plough can be mounted to 15-120 HP tractors with 2 ways of reverse-mechanical (J) , and hydraulic (Y). Hydraulic reversed plough can be adjusted for the different width and different tractors, the .hydraulic system is automatically and the operation is smooth without any troubles.
item unit 1LY(SX)-325 1LY(SX)-425 1LY(SX)-525 1LY(SX)-625
Working width m 0.75 1.00 1.25 1.50
Max working depth cm 25 25 25 30
No of disc piece 3 4 5 6
Dia of disc mm 660 660 660 660
weight kg 520 600 680 780
lingkage Type ? three point mounted
Matched power kw 40-70 40-90 50-90 70-100
