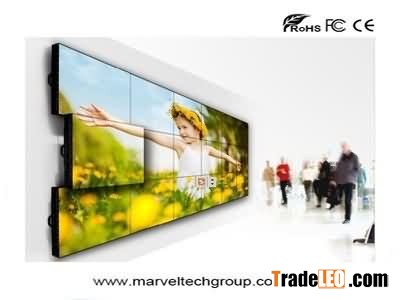

LCD Video Wall Screen (SAMSUNG DID) Specifications
Model No. M5503-VW
Panel Size 55" Samsung LCD Screen(with narrow bezel 5.3mm,with LED Backlight)
Aspect Ratio 16:9
Max Resolution Support 1920x1080
Color 10Bit,1.06B
Brightness (nits) 450cd/m2
Contrast 3000:1
Visual Angle (H/V) 178°
Response Time 8ms
Life(hrs) >80,000(hrs)
Input and output
DVI 1
HDMI 1
D-15 RGB Input(VGA) 1
YUV/YPbPR 1(3xBNC)
S-(YC) 1(2xBNC)
Composite Video Input/(AV) 3(3xBNC)
Composite Video Output 2(2xBNC)
AUDIO INPUT 1
Split Screen Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply AC100V~240V
Maximum Power Consumption 230W
Standby Power Consumption <=3W
Temperature
Working Temperature 0?~50?
Working Humidity 20%-80%
Dimension 1215.3×686.1mmx131mm
