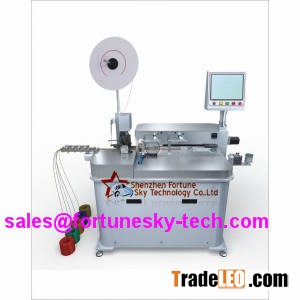

Automatic wire single-end terminal crimping single-end soldering machine
Technical Parameters
Model
BJ-Z808 Full Automatic Single-end Wire Cut Strip Crimp Soldering Machine
Function
Wire cutting, single-end twisting wetting and crimping
Processing wire range
AWG24-AWG18 AWG24-AWG32
Production Capacity
7000-9000pcs per hour (decided by wire type)
Cutting Length
8mm-350mm (special length can be customized)
Length of soldering
0.5-7mm
Cutting Accuracy
0.2+-0.02xL
Stripping Length
0.1-10mm (above 10mm need to be customized)
Twisting Length
3-10mm
Pressure Capacity
19600N-2T
Air Pressure
5-6KG
Power
AC 220V 50/60Hz (single phase)
Body Size
1210x770x1370mm (excl. projections)
Body Weight
450kg
